9903-AC01-BkAu
AC-01 BK(Au) IEC Socket
    IeGO's AC-01 series Basic Specs:
    1. 99.99% pure silver: Higher than 99.99% purity silver is used for AC-01AG series sockets, and now directly plated with gold to prevent silver tarnish from forming. No longer will the tarnish be formed on the silver pins itself.
    2. Gold plated 99.99% pure copper: Higher than 99.99% purity copper with direct gold plating is used for AC-01GU.
    3. Forged powder metal process: Precision forged powder metal manufacturing process allows excellent surface uniformity (better contacts!).
    4. Cryo treated: Main metal pins are cryo treated for 22 hours at -240C/-400F for better performance.
    5. Polycarbonate housing: Impact and flame resistant polycarbonate is used for AC-01 series' housing, instead of the more fragile nylon or other plastics.
    6. Easy mounting: High quality silver plated copper ring terminals are included for easy solderless mounting. (Crimp wire on ring terminal and then solder the crimp is recommended for even better performance, but no soldering should be done on the socket itself).
    7. Included Accessory: Mounting screw sets, silver plated ring terminal sets (3 for all units), allows equipments to be mounted with NO soldering required!
iTopPlus148264671888
RCA protector

iTopPlus100188612172
AC-01 BK(Rh) Copper+Rhodium plated IEC Socket

iTopPlus359802132439
AC-01 BK(Ag-Rh) Rhodium plated IEC Socket

iTopPlus1055903343305
iTopPlus1055903343305
iTopPlus1055903343305
8922-0005-0560

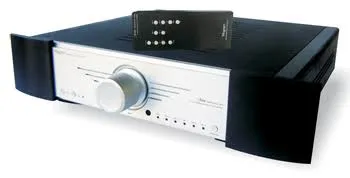

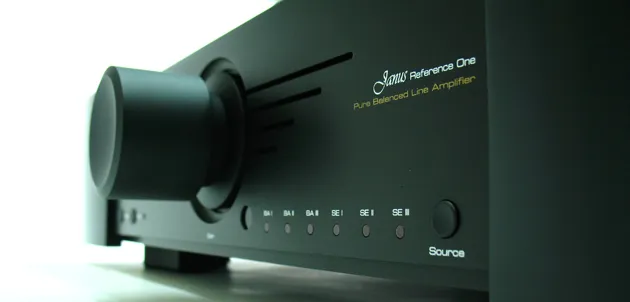

Janus Reference One BLK

Janus Reference ONE

iTopPlus217366496363     iTopPlus54774303684

Janus Reference ONE A Truly Balanced Luxurious Listening Experience

The Janus Reference One is truly dual monaural, fully balanced and pure tube in pure Class A operation, extremely low noise, with high intrinsic linearity that provides a performance of exquisite vacuum tube in terms of transparency, ambience, harmonics and refinement.

High grade selected components, balanced mode operation on balanced circuit layout, result in lower noise and therefore a cleaner signal. And with our craftsmanship of the highest level you get the most appropriate compliments to the sound of The Janus Reference One.

The Janus Reference One with true dual monaural features completely independent left and right channel operation, outfitted with oversized toroidal transformers and dedicated stabilized power supplies.

The Janus Reference ONE is packaged in an artistically refined massive chassis constructed of 4.5 mm thick aluminum. This rigid aluminum chassis ensures total freedom from typical coloration problems caused by vibration and current-induced hysteresis distortion. The chassis features a brushed anodized finish which preserves the natural beauty of the aluminum while providing a distinctive appearance that blend elegantly with interior décor.

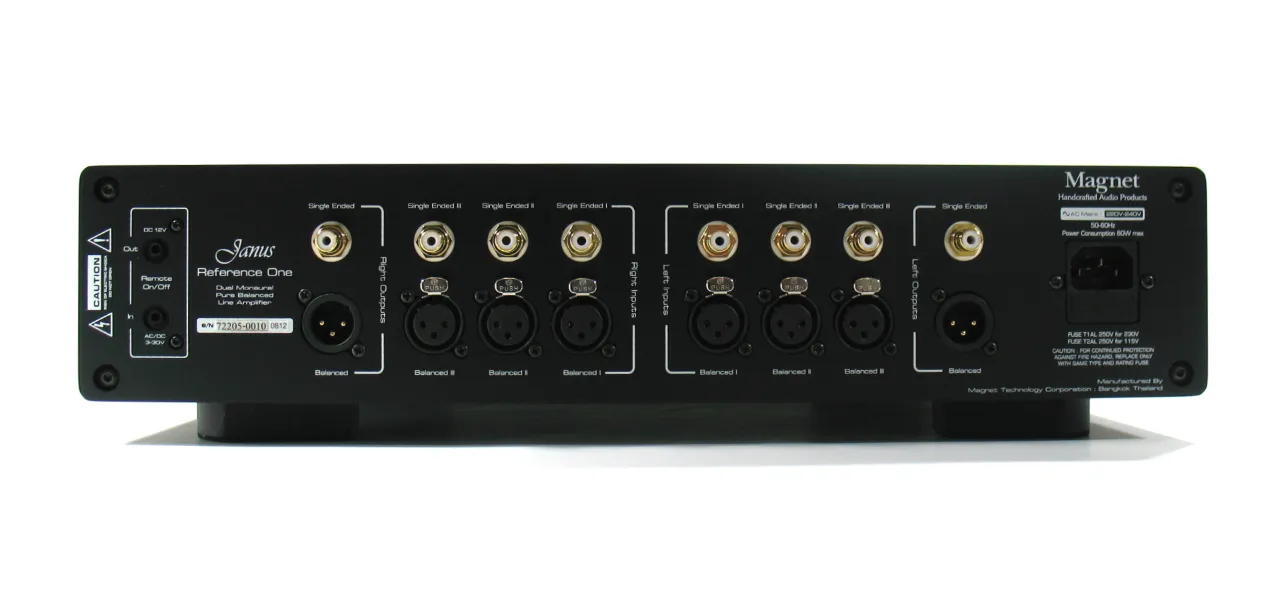

Finally, The Janus Reference ONE is flexibility that is provided for with 3RCA and 3 Balanced XLR input pairs and full inferred remote controlled functions over volume, mute, input selection and turn ON-OFF.

 Technical Specification

 ConfigurationDual Monaural Truly Balanced Vacuum Tube Line Amplifer
 Signal gain9.0 dB
 Frequency response20Hz-50kHz +/- 0.1dB
 ฺBandwidth0.5Hz-300kHz (-3dB)
 Total harmonic distortion THD+NoiseBetter Than 0.05% @ 1.0Vrms OUTPUT
 Signal to noise RatioBetter Than -72dB @ 20kHz
 Channel SeperationBetter Than -94dB @ 1kHz or -91dB @ 20kHz
 Input Impedance1Mega Ohm Unbalanced / 2Mega Ohm Balanced
 Input Sensitivity20mV @ 1.0Vrms OUTPUT
 Maximun signal voltage output9.0 Vrms
 Remote Trigger Input3-30V AC/DC 15mA +/- 5mA
 Remote Trigger Output12 Vdc 100mA
