- IeGO's AC-01 series Basic Specs:
- 99.99% pure silver: Higher than 99.99% purity silver is used for AC-01AG series sockets, and now directly plated with gold to prevent silver tarnish from forming. No longer will the tarnish be formed on the silver pins itself.
- Gold plated 99.99% pure copper: Higher than 99.99% purity copper with direct gold plating is used for AC-01GU.
- Forged powder metal process: Precision forged powder metal manufacturing process allows excellent surface uniformity (better contacts!).
- Cryo treated: Main metal pins are cryo treated for 22 hours at -240C/-400F for better performance.
- Polycarbonate housing: Impact and flame resistant polycarbonate is used for AC-01 series' housing, instead of the more fragile nylon or other plastics.
- Easy mounting: High quality silver plated copper ring terminals are included for easy solderless mounting. (Crimp wire on ring terminal and then solder the crimp is recommended for even better performance, but no soldering should be done on the socket itself).
- Included Accessory: Mounting screw sets, silver plated ring terminal sets (3 for all units), allows equipments to be mounted with NO soldering required!

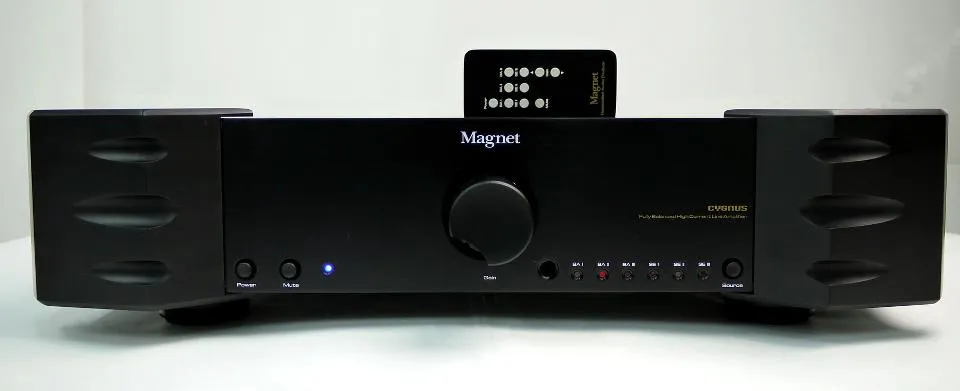

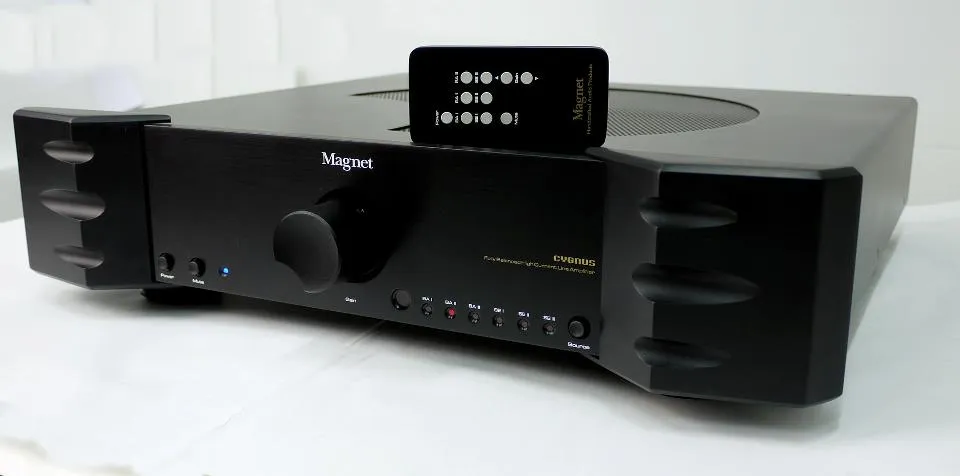

Cygnus A Truly Balanced Luxurious Listening Experience
True Balanced Circuitry to Compliment our Power Amplifiers for the Highest Possible Performance
-Balanced inputs and outputs for minimum noise
-Wireless Remote
-''Tracking'' regulated power supplies for maximum detail
-Direct-coupled signal paths employing Richard’s “Servo-Control” Technology
Advanced ''Class A'' Circuitry
The Cygnus advanced circuitry runs in pure ''Class A'' for uncompromising performance. Bi-polar and FET field effect transistors are used in a folded cascade configuration for linear, low noise operation.

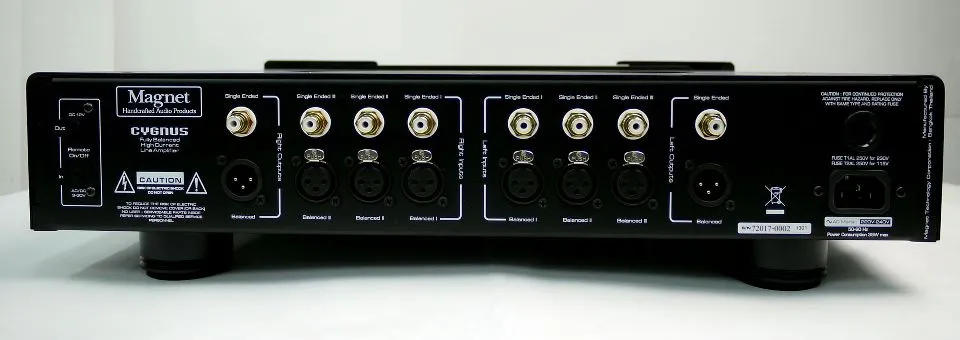

Finally, The Cygnus is flexibility that is provided for with 3RCA and 3 Balanced XLR input pairs and full inferred remote controlled functions over volume, mute, input selection and turn ON-OFF.
Technical Specification
| Frequency response | 20Hz-50kHz +/- 0.5dB |
| ฺBandwidth | 0.5Hz-300kHz (-3dB) |
| Total harmonic distortion THD+Noise | Better Than 0.003% @ 1.0Vrms OUTPUT |
| Signal to noise Ratio | Better Than -85dB @ 20kHz |
| Channel Seperation | Better Than -94dB @ 1kHz or -91dB @ 20kHz |
| Input Impedance | 1Mega Ohm Unbalanced / 2Mega Ohm Balanced |
| Input Sensitivity | 20mV @ 1.0Vrms OUTPUT |
| Maximun signal voltage output | 9.0 Vrms |
| Remote Trigger Input | 3-30V AC/DC 15mA +/- 5mA |
| Remote Trigger Output | 12 Vdc 100mA |
