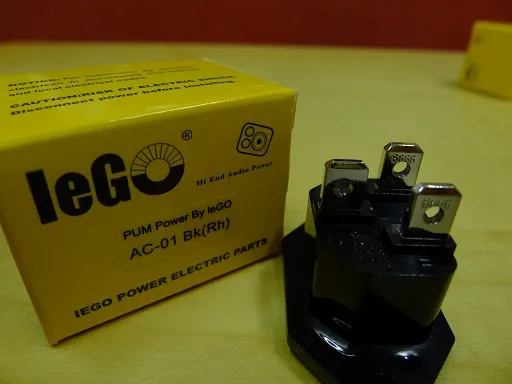

- IeGO's AC-01 series Basic Specs:
- 99.99% pure silver: Higher than 99.99% purity silver is used for AC-01AG series sockets, and now directly plated with gold to prevent silver tarnish from forming. No longer will the tarnish be formed on the silver pins itself.
- Gold plated 99.99% pure copper: Higher than 99.99% purity copper with direct gold plating is used for AC-01GU.
- Forged powder metal process: Precision forged powder metal manufacturing process allows excellent surface uniformity (better contacts!).
- Cryo treated: Main metal pins are cryo treated for 22 hours at -240C/-400F for better performance.
- Polycarbonate housing: Impact and flame resistant polycarbonate is used for AC-01 series' housing, instead of the more fragile nylon or other plastics.
- Easy mounting: High quality silver plated copper ring terminals are included for easy solderless mounting. (Crimp wire on ring terminal and then solder the crimp is recommended for even better performance, but no soldering should be done on the socket itself).
- Included Accessory: Mounting screw sets, silver plated ring terminal sets (3 for all units), allows equipments to be mounted with NO soldering required!
z-z1149900662652.webp)

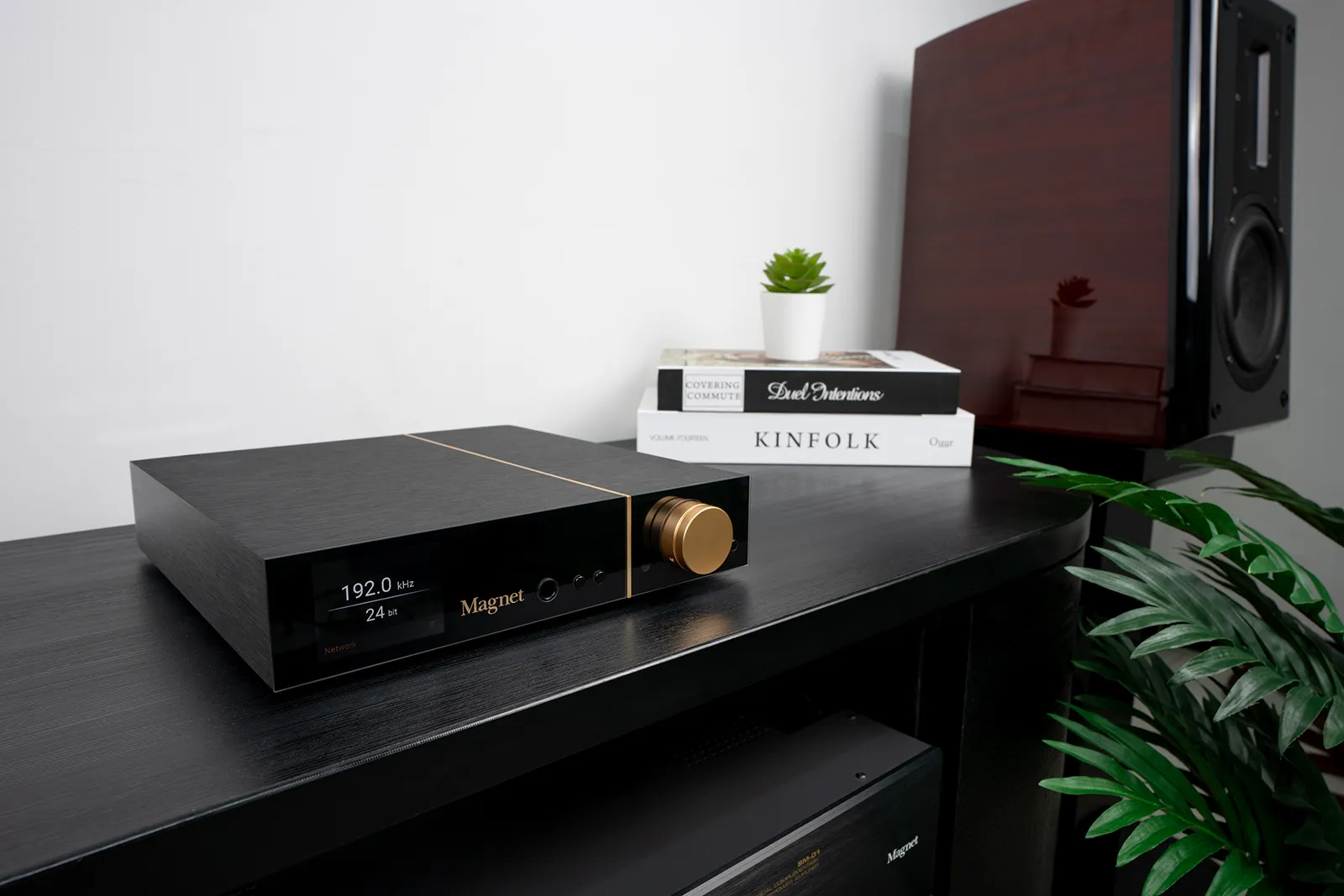

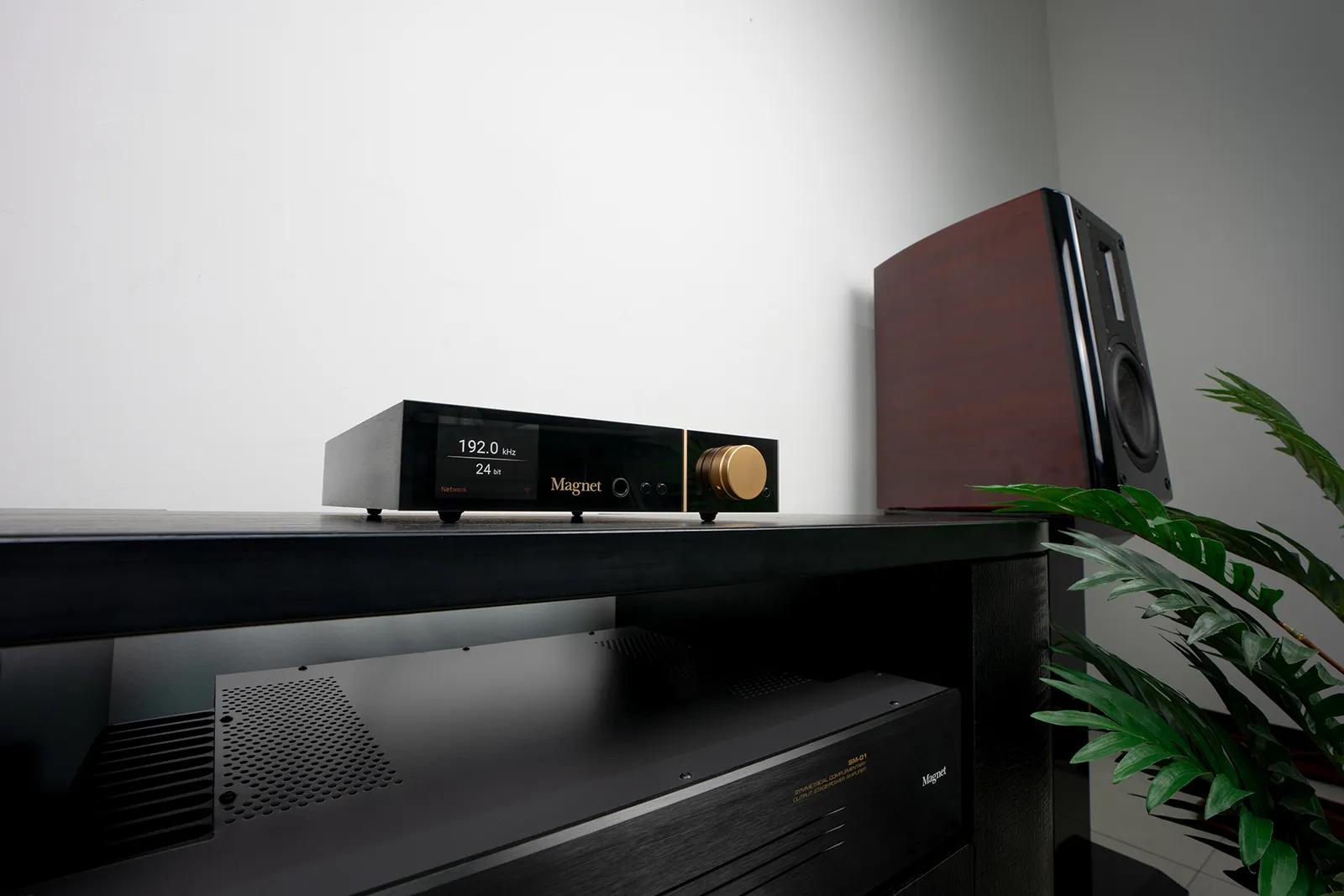

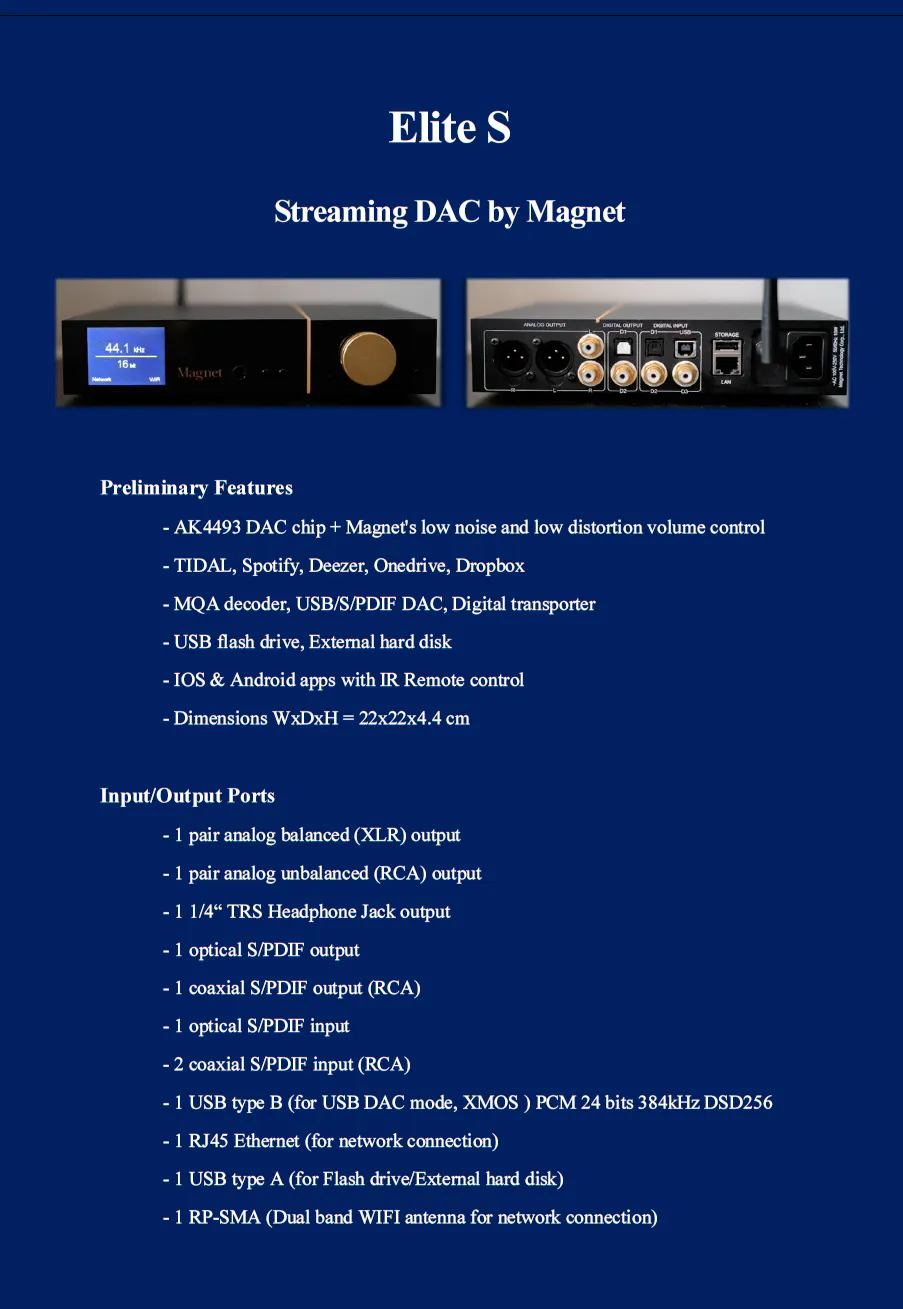

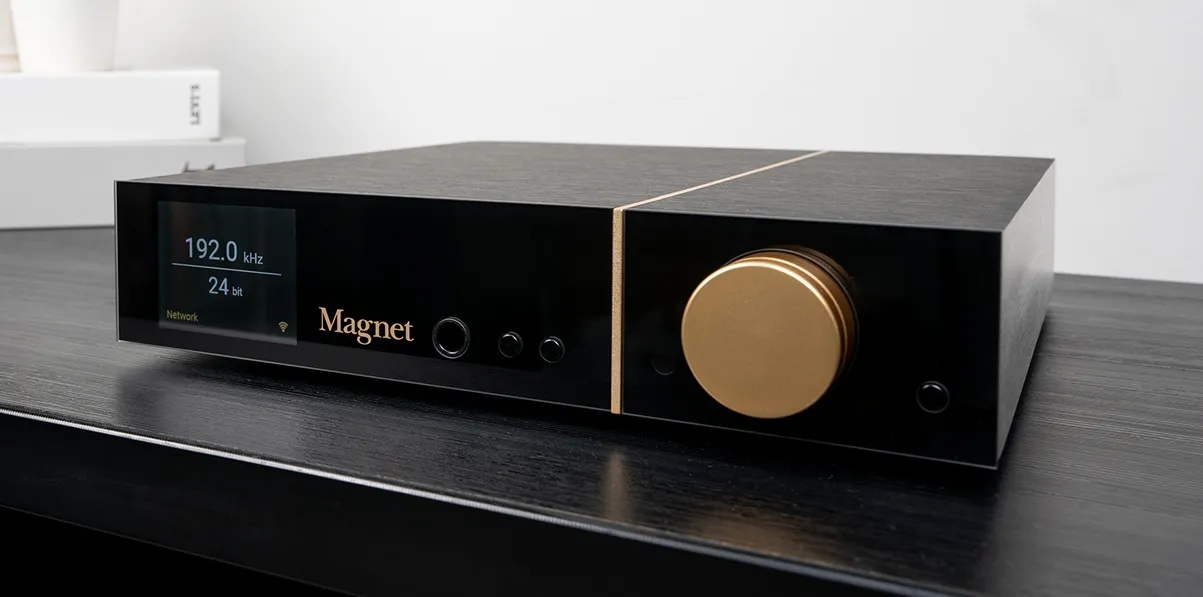

Elite S
Streaming DAC

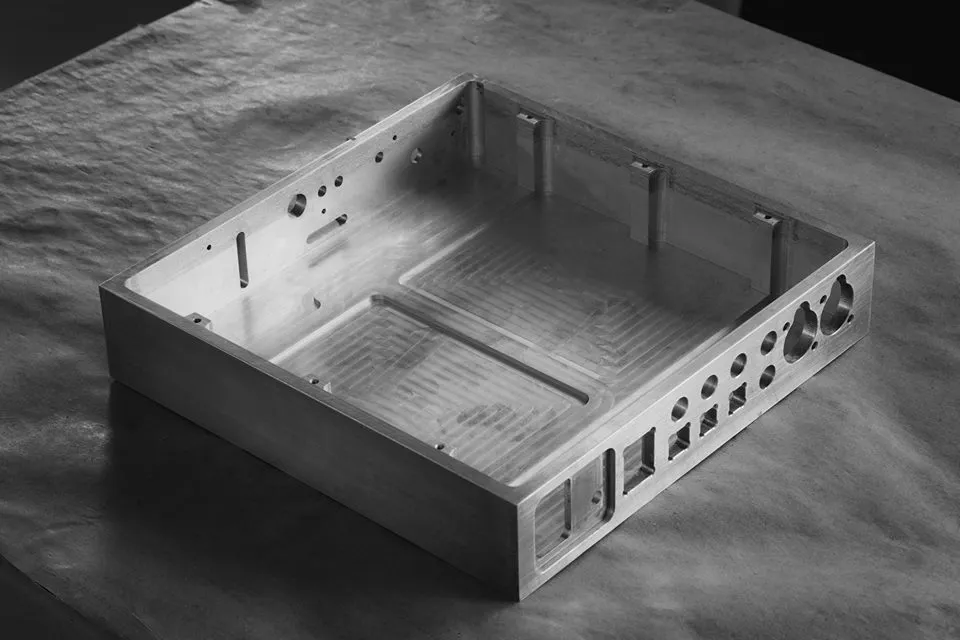

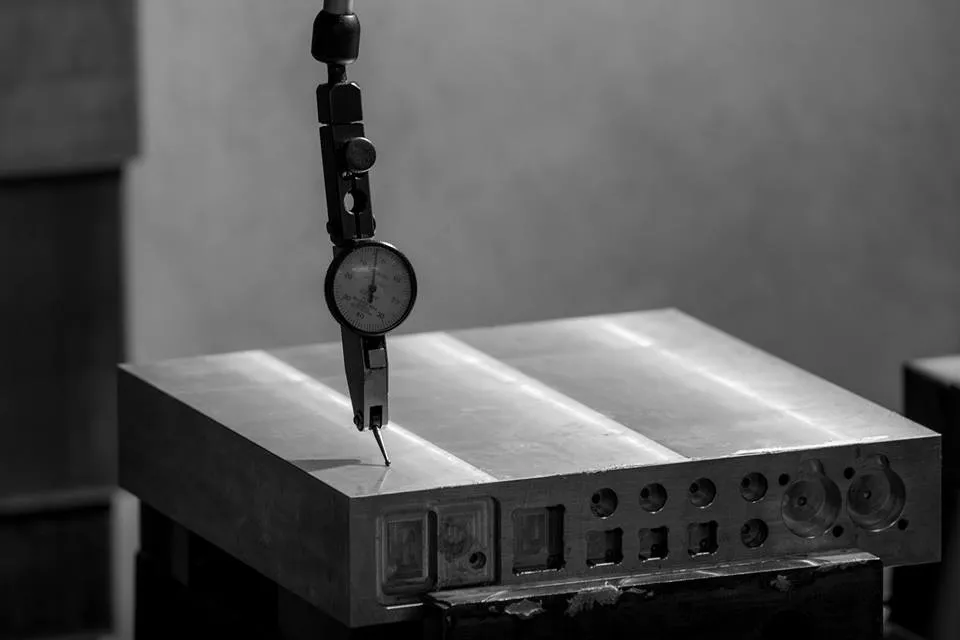

Manufacturing process of Magnet’s streaming DAC chassis. CNC machined from a single aluminum plate to achieve a sturdy, seamless and polished design.

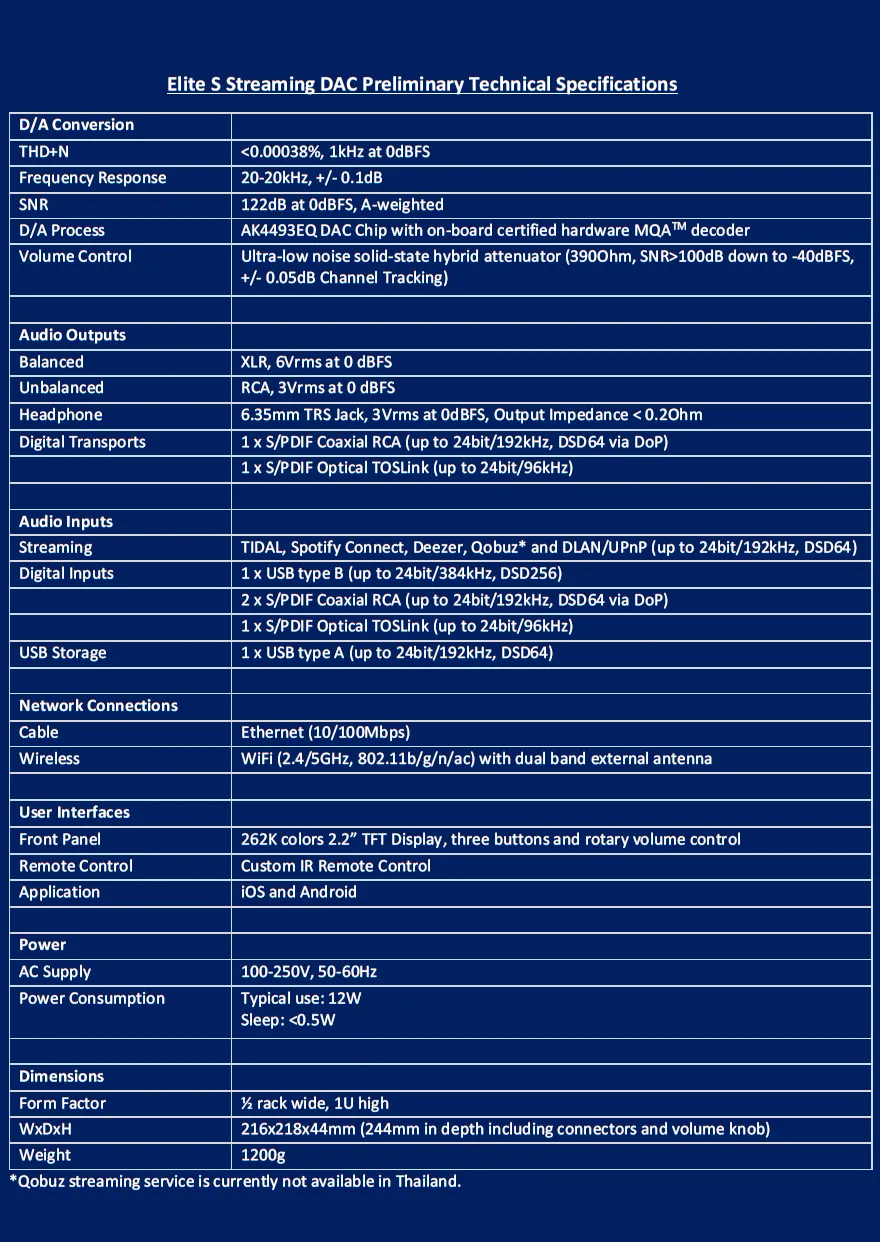

Technical Specification
- AK4493 DAC chip + Magnet's low noise and low distortion volume control
- TIDAL,Spotify, Deezer, Onedrive, Dropbox
- MQA decoder, USB/SPDIF DAC, Digital transporter
- USB flash drive, External hard disk
- IOS & Android apps

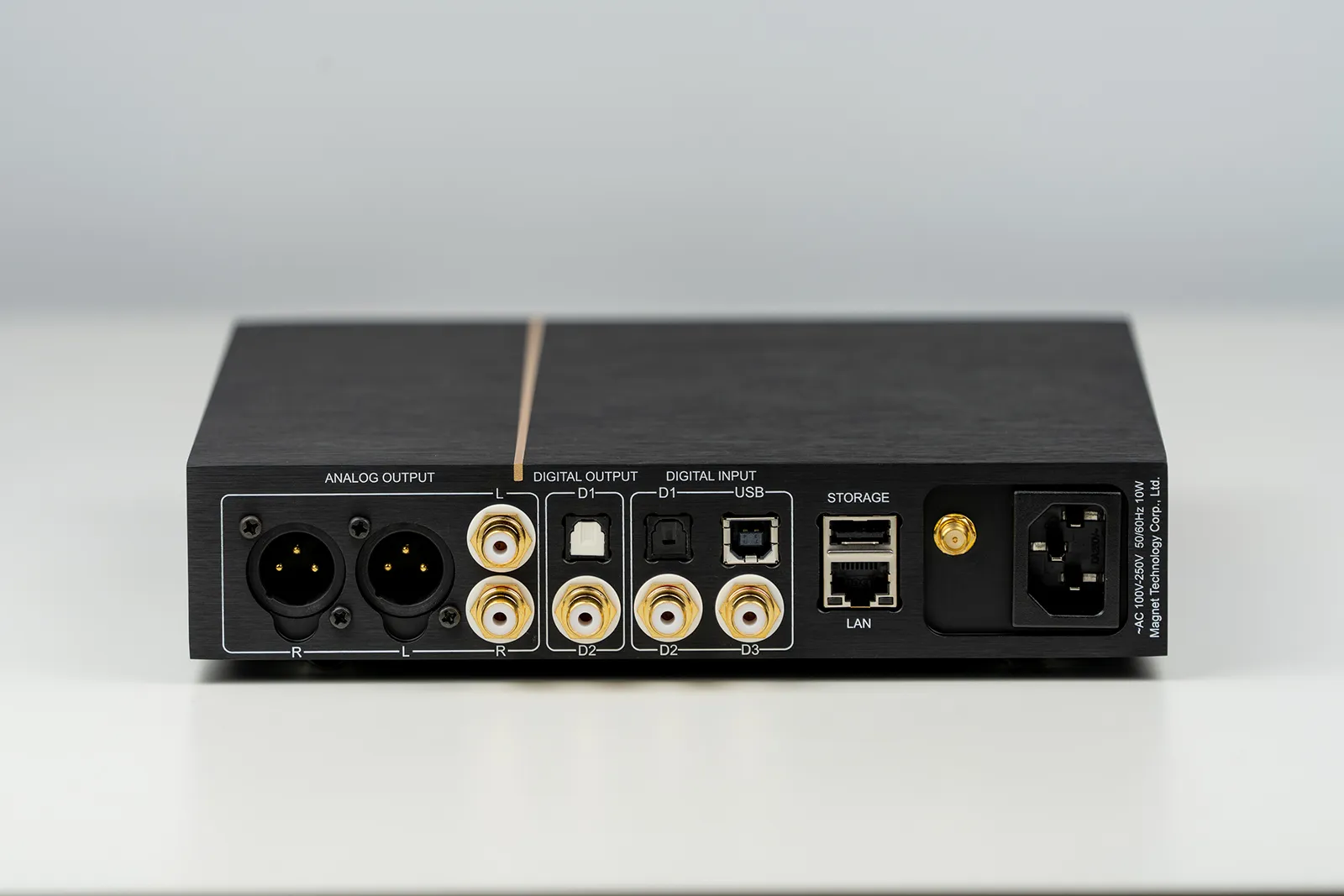

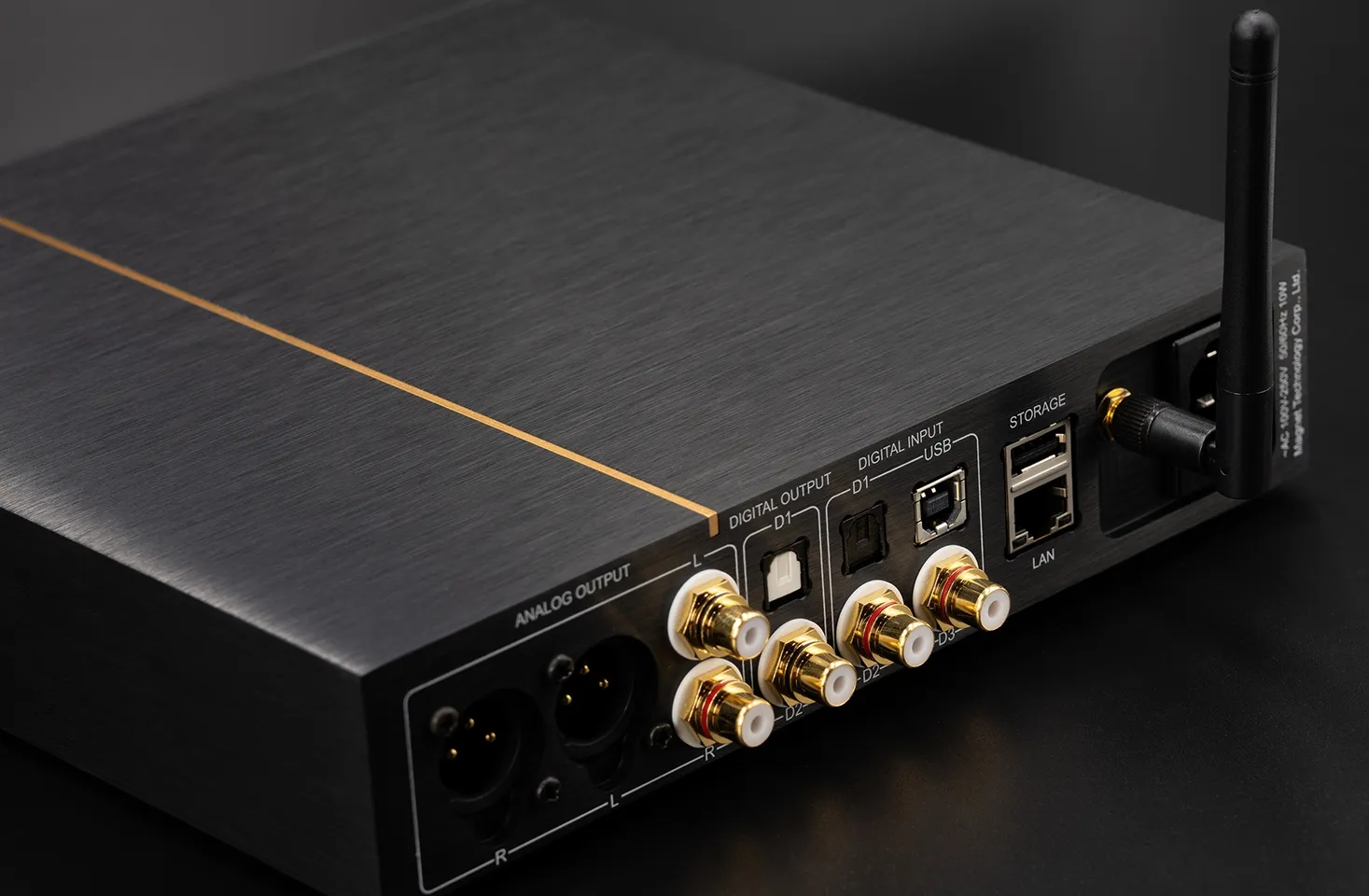

Input/Output Port List
- 1 pair analog balanced (XLR)
- 1 pair analog unbalanced (RCA)
- 1 1/4“ TRS Headphone Jack
- 1 optical output
- 1 coaxial output (RCA)
- 1 optical input
- 2 coaxial input (RCA)
- 1 USB type B (for USB DAC mode)
- 1 RJ45 Ethernet (for network connection)
- 1 USB type A (for Flash drive/External hard disk)
- 1 RP-SMA (for Wi-Fi antenna)
