- IeGO's AC-01 series Basic Specs:
- 99.99% pure silver: Higher than 99.99% purity silver is used for AC-01AG series sockets, and now directly plated with gold to prevent silver tarnish from forming. No longer will the tarnish be formed on the silver pins itself.
- Gold plated 99.99% pure copper: Higher than 99.99% purity copper with direct gold plating is used for AC-01GU.
- Forged powder metal process: Precision forged powder metal manufacturing process allows excellent surface uniformity (better contacts!).
- Cryo treated: Main metal pins are cryo treated for 22 hours at -240C/-400F for better performance.
- Polycarbonate housing: Impact and flame resistant polycarbonate is used for AC-01 series' housing, instead of the more fragile nylon or other plastics.
- Easy mounting: High quality silver plated copper ring terminals are included for easy solderless mounting. (Crimp wire on ring terminal and then solder the crimp is recommended for even better performance, but no soldering should be done on the socket itself).
- Included Accessory: Mounting screw sets, silver plated ring terminal sets (3 for all units), allows equipments to be mounted with NO soldering required!

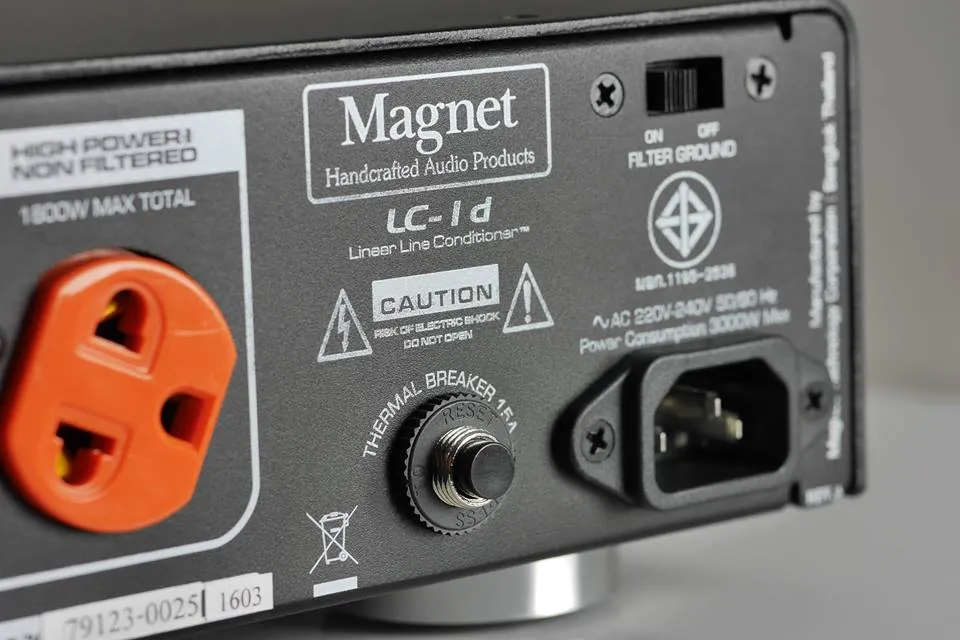

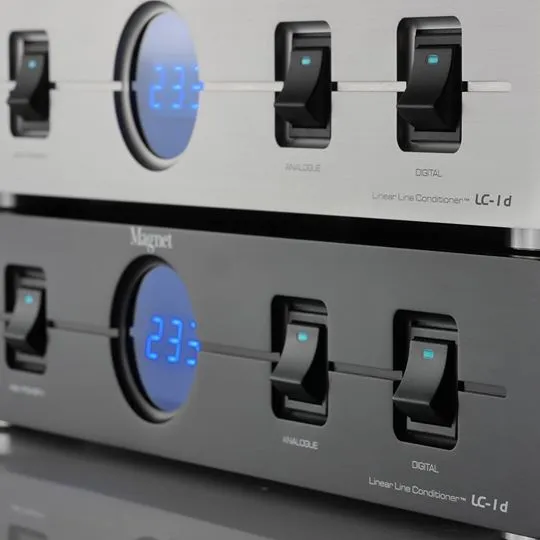

LC-1d Linear Line Conditioner
LC-1d Linear Line Conditioner is designed to make clean AC sources for improve the performance of every component in your audio or home theater system. LC-1d helps to reduce EMI/RFI that comes with the main AC line. LC-1d comes with four individually EMI/RFI filtered circuits which can be controlled by four power switches on front panel. All together there are eight outlets for 3000W total capacity. There are separate circuits for power amplifiers, analog and digital component.
Technical Specification
| Fuse size | ANALOG : 3 A Time - lag |
| DIGITAL : 3 A Time - lag | |
| AMP1 : 8 A Time - lag | |
| AMP2 : 8 A Time - lag | |
| Power output | ANALOG : 700W(Max) |
| DIGITAL : 700W(Max) | |
| AMP1 : 1800W(Max) | |
| AMP2 : 1800W(Max) | |
| Power Requirement (AC) | 220 VAC 50/60Hz 3000 Watt |
